Presented here is an example of a complete solution for a supersonic flow over 15 degree wedge.
This test case is the commonly used reference case with an onflow mach number of Ma=2.5 at standard sea level
ISA conditions (p=101000 N/m^2, T=286.11 K).
A good write-up along with reuslts from another CFD-code can be found at the
NPARC Alliance Validation Archive.
Using a single block, structured euler grid of 156x100 cells a total of 500 3w-multigrid-cycles are performed until convergence is achieved.
This solver run is done using local time-stepping, a CFL number of 7.5, implicit residual smoothing with variable coefficients scaled with an
epsilon of 0.8, and 2nd and 4th order artificial viscosity terms scaled with factors of 0.5 and 1/64 respectively. Corrections are smoothed implicitly
with a constant coefficient of 0.01.
|

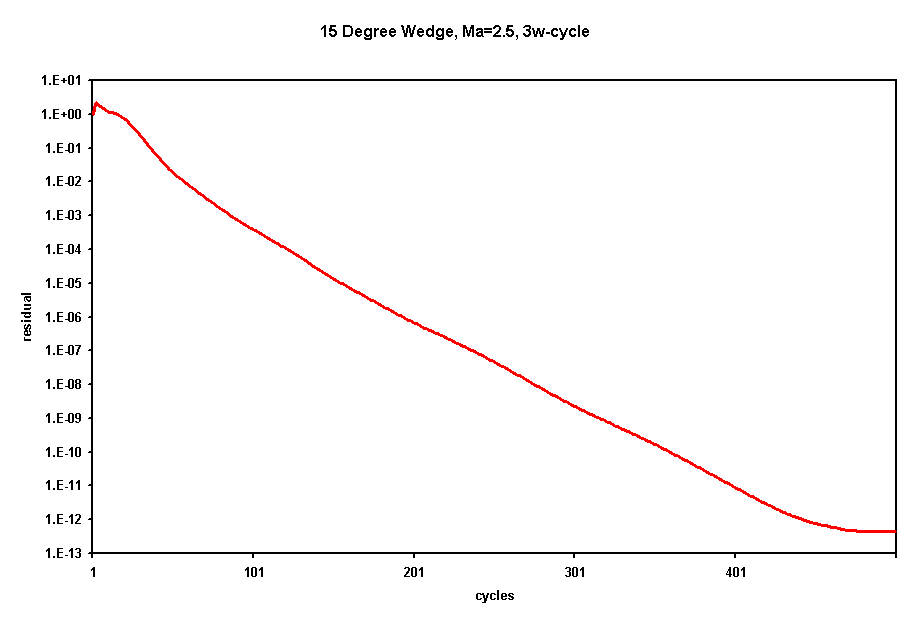

Logarithmic plot of the density residual during the 500 cycles.
|

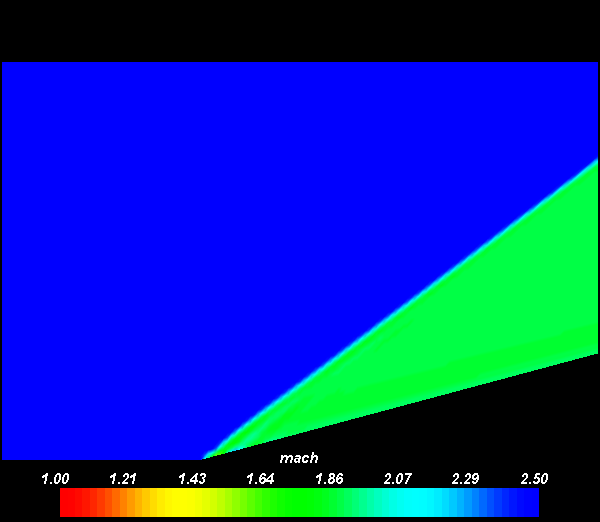

The steady-state mach-distribution shows a good shock resolution and position, which agree favorably with the experimental results found
in literature.
|
|
|
|
